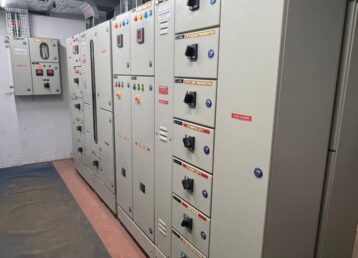

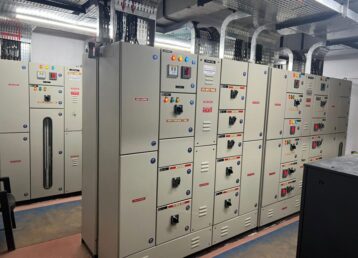

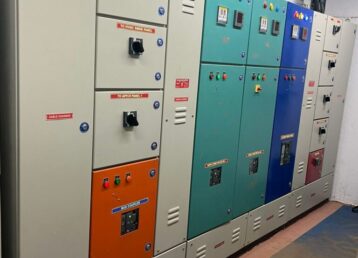

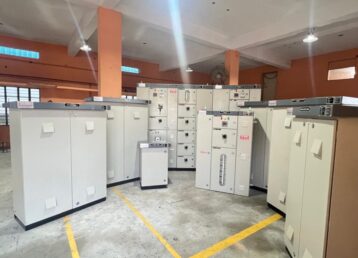

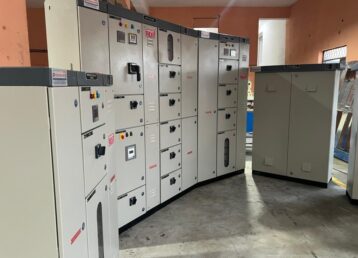

Low Voltage Panels
At Tech PI Solutions, we specialize in the design and manufacturing of high-quality Low Voltage (LV) Panels that meet stringent industry standards. Our LV panels are engineered for optimal performance and safety, catering to the diverse needs of industrial, commercial, and residential sectors. Certified by CPRI and ISO, our panels are built to deliver reliability and efficiency in various electrical applications.
Main LT Panels
- Specifications: Designed as per IS/IEC standards and CPRI approved.
- Features: Suitable for operating on 415 Volts 3 Phase 4 wire 50 Hz AC Supply up to 6000A current rating. Can withstand fault levels up to 70kA.
- Benefits: Robust construction using best quality CRCA sheets, capable of withstanding mechanical, electrical, and thermal stresses, as well as humidity effects.
AMF/DG Synchronizing Panels
- Features: Equipped with PLC or load sharing technology.
- Benefits: Ensures seamless transition between mains and generator power, optimizing generator usage and fuel efficiency.
APFCR Panels (Automatic Power Factor Correction)
- Features: Automated control to maintain the desired power factor.
- Benefits: Improves energy efficiency, reduces electricity costs, and prevents penalties from power utilities.
Power Control Centre Panels (PCC)
- Features: Centralized control for electrical power distribution.
- Benefits: Enhances operational efficiency and safety, suitable for high load applications.
Motor Control Centre Panels (MCC)
- Features: Modular design with options for various motor starting methods.
- Benefits: Facilitates easy control and protection of motors, ensuring reliable operation in industrial environments.
Relay, Metering & Annunciation Panels
- Features: Comprehensive monitoring and control solutions.
- Benefits: Enhances system protection and management, enabling quick response to electrical faults.
Starter Panels with PLC/VFD
- Features: Integrated with Programmable Logic Controllers (PLC) and Variable Frequency Drives (VFD).
- Benefits: Provides precise control over motor operations, enhancing efficiency and prolonging equipment lifespan.
Applications
Our Low Voltage Panels are ideal for a variety of applications, including:
Industrial Plants
Commercial Buildings
Residential Complexes
Hospitals
Data Centers
Educational Institutions
Hospitality Industry
Quality Assurance
Our Low Voltage Panels are crafted to meet the highest quality standards. We adhere to a stringent quality control process, including:
- Material Verification: Ensuring all components and materials comply with specifications.
- Mechanical and Electrical Testing: Conducting torque tests, insulation resistance tests, high voltage tests, and primary and secondary injection tests for breakers.
- Functional Testing: Verifying operational performance and breaker interlocking mechanisms.
- Environmental Testing: Assessing performance under high ambient temperatures and humidity conditions.
Custom Solutions
We understand that every project has unique requirements. Our team works closely with clients to develop customized LV panels tailored to specific applications. From design to fabrication, we ensure that our solutions meet your exact needs and standards.
